Metal hoses are known by many terms including stainless steel hose, stainless steel lines,
braided steel hose, flex hose, steel hose, flexible metal hose, flexible steel hose, flex metal
hoss, stainless steel lines, steel hoses, steel braided lines, flex line. These all refer to a hose with a
metal liner that may or may not have a metal braided cover. The hose end fittings are welded onto your metal
hoses. Metal hoses are helium leak tested. Flexible metal hoses are excellent high temperature hoses.

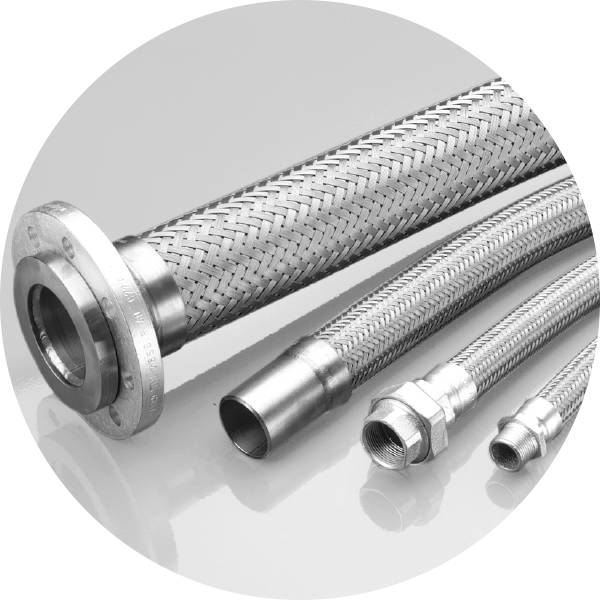

FLEXIBLE METAL HOSES
Metal Hose
Bulk Metal hoses
Thunder Technlologies LLC
Goodyear Rubber Hoses
Flexible Metal Hoses
We accept Visa, Mastercard, and Discover Cards
Rubber Strips
Rolls of Rubber
PTFE hose assemblies
Send an email
ASME B31.3 IX
UL Approved
Flexible Metal Hoses
Goodyear Star Distributor
Request a Quote
24/7 EMERGENCY SERVICE 248-844-4875
Thunder Technologies LLC 2275 Star Ct. Rochester Hills, MI 48309 248-844-4875 sales@thundertechllc.com
THANK YOU FOR VISITING THUNDER TECHNOLOGIES.
WE LOOK FORWARD TO WORKING WITH YOU
CALL US WITH YOUR QUESTIONS! 248-844-4875
DON'T SEE WHAT YOU NEED? CALL US. WE CAN FIND IT FOR YOU!
PRICING & AVAILABILITY
To receive pricing and availability for your application, or to discuss design options:
Please call 248-844-4875 for the fastest response
Or send an email with your requirements to sales@thundertechllc.com
We accept Visa, Mastercard, American Express & Discover for your convenience
B31.3 IX
Request a Quote
THE RIGHT WAY TO TEST FLEXIBLE METAL HOSES
Did You Know....All metal hoses leak! The ONLY way to accurately leak test your metal hoses
is by using helium and a mass spectrometer to determine your leak rate. Most fabricators do not
have mass spectrometers, so instead, they will test your hose by putting it into a bucket of water
and eyeball it for bubbles.
APPLICATIONS FOR FLEXIBLE METAL HOSES
Flexline flexible metal hoses
Expansion joints
Fuel Cell hoses
Gas turbine hoses
Chemical metal hoses

THUNDER TECHNOLOGIES METAL HOSE SERVICES
Our metal hose welding is certified ASME B31.3 Section IX
Standard and Custom Fittings are available for your flex metal hoses
Oxygen Service cleaning available for your flexible metal hoses lines
Helium Leak testing, hydrastatic, pnuematic testing, & Certification is available for your metal hoses
Hose ID markings are available on your metal hoses
Radiographic & dye penetrant inspection service available on your metal hoses
Add a Gasket and we can test your metal hose as a complete set
FEATURES AND CHARACTERISTICS OF METAL HOSES
Sizes: " - 16" ID
Length: Custom to your metal hoses' specifications
Temperature range: -320F to 1500F
Pressure range: Up to 5800 psi
Fittings: Standard and custom fittings welded to your metal hose assembly, including
Titanium fittings
Cover: With or without a stainless steel braided hose cover. We can also add an EPDM
..rubber cover for color coding or operator safety from extreme temperatures
Materials: 321 & 316 Stainless Steel; and specialty metals including
..Hastelloy, Monel, and Inconel
Helical and Annular metal hose liners available for your metal hoses
Strip wound metal hose liners available
Interlocked metal hose liners available
Tubular and braided metal hose styles available
Stainless steel metal hoses absorb vibration
Metal hoses are chemical resistant
No effusion with our tight welds on our metal hose assemblies
Metal hoses are ideal as high temperature hoses for piping installations
Cryogenic metal hoses
Coolant hoses
Natural Gas hoses
Pump hoses
Pump connectors
Steam Hose
Alcohol Hose assemblies
Solvent hose assemblies
Bleach hose assembly
High Temperature hoses
CALL US WITH YOUR QUESTIONS! 248-844-4875
DON'T SEE WHAT YOU NEED? CALL US. WE CAN FIND IT FOR YOU
CRITICAL HOSE ASSEMBLIES & CUT RUBBER SPECIALISTS
Thunder Technologies LLC
2275 Star Ct.
Rochester Hills, MI 48309
248.844.4875 ph
248.844.5686 fx
sales@thundertechllc.com
WELDING PROCEDURES
Your flexible metal hoses are welded together according to ASME B31.3 Section IX certified
procedures. Your metal hoses are then helium leak tested with a mass spectrometer if
requested. Further radiograph or x-ray testing, dye penetrant testing and cleaning is available.

You can be confident that, because of superior fabricating welding procedures, and helium
leak testing
capabilities, your flexible metal hoses are the highest quality for your critical
application. Our flexible metal hoses are used by the Navy, NASA, nuclear and power
generation, military contractors, pharmaceutical manufacturers, and chemical manufacturers.
Every hose fabricator will tell you that they make quality hose assemblies. But, Thunder
Technolgies hoses are made wiht state-of-the-art procedures and testing capabilities.

You want to know your metal hose's leak rate
Your flexible metal hose can be tested with a mass spectrometer so we can give you the exact leak
rate of your metal hoses. Unless your specs require a more stringent leak rate, your metal hose will be
tested at a leak rate of 10
-8, or a leak rate of about 1 drop of fluid per year.

Testing metal hose assemblies in a bucket of water DOES NOT give you the leak rate for your
critical metal hose requirements. This inferior metal hose leak testing is not uncommon among metal
hose fabricators.
